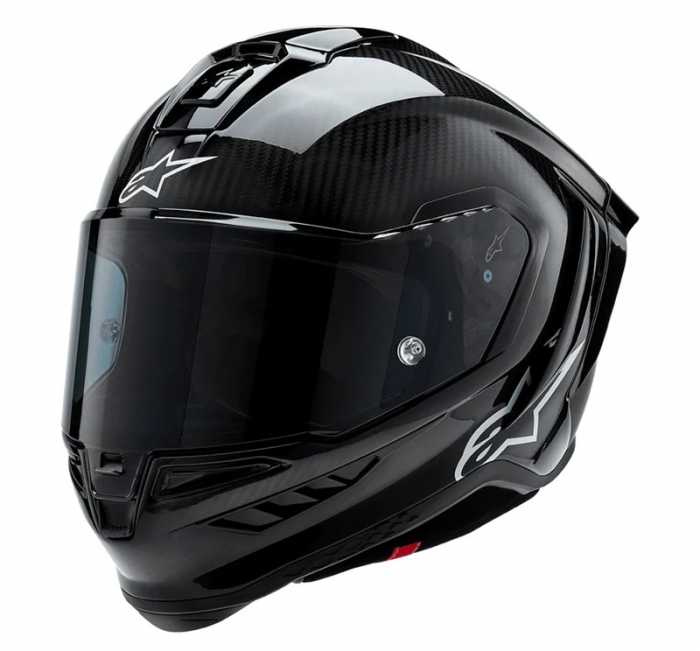

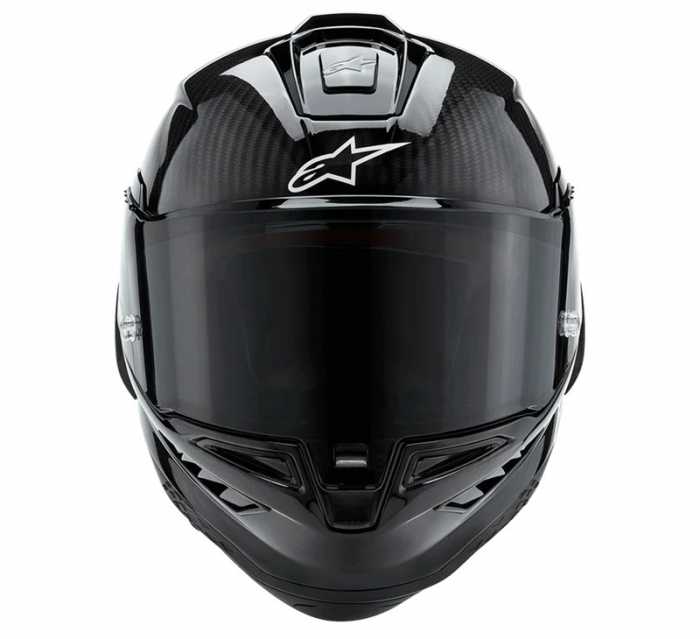

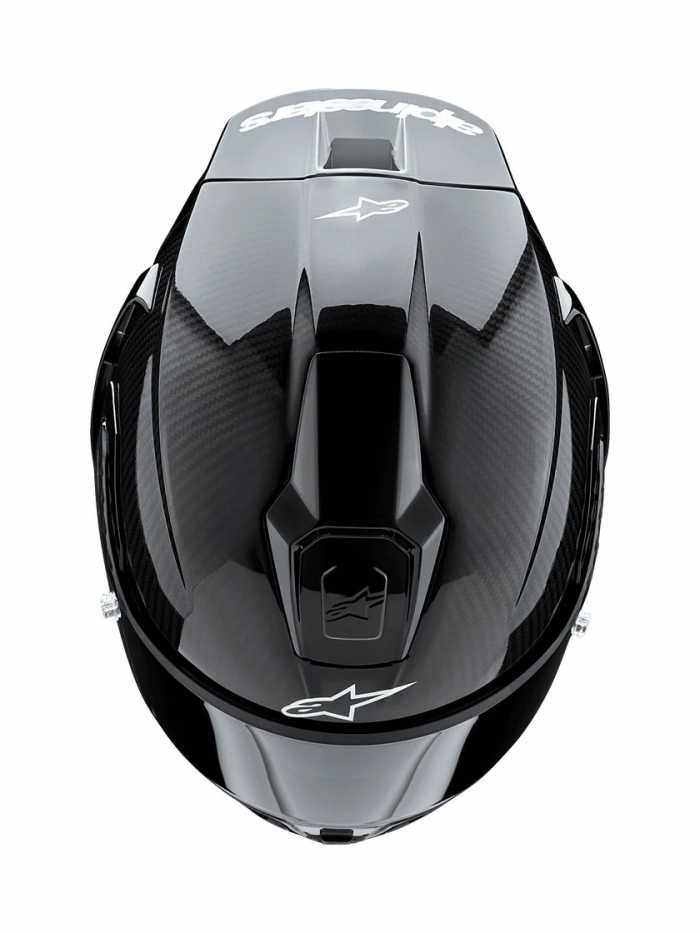

Helmet Supertech R10 Carbon Black

TECHNICAL FEATURES:

Optimized chin guard design for maximum collarbone protection. In addition to the shell optimized for aerodynamic and resistance performance, it is also designed with a recess in the collarbone area to make any contact with the body softer. The chin guard is designed to be lightweight and sturdy, protecting the rider's chin.

OUTER SHELL:

Multi-layer composite construction bonded with advanced epoxy resin to maximize strength and mechanical performance to weight ratio.

The internal and external design and material densities are optimized for maximum protection from linear and oblique impacts.

The lower profile of the shell is designed to protect the rider's collarbone in the event of a strong impact.

Helmet shape developed to improve efficiency and aerodynamic stability.

Race spoiler and winglets further reduce air resistance by 4.54%

The aerodynamic spoiler features a patented release system, also used on the visor of the Alpinestars S-M10 motocross helmet, with elastic joints that help the spoiler detach from the helmet shell if subjected to a significant impact, regardless of the angle. 2 spoilers available: Road (standard) and Race - with a more drastic aerodynamic effect.

Side fins support stability and improve aerodynamic drag. The S-R10 helmet is equipped with turbulators on the visor, to improve aero-acoustic performance.

Maximum vision

Low visor profile and head position are maximized for maximum vision and riding comfort. The lateral line is lowered for side viewing in any position.

220° of lateral vision and 57° of vertical vision

Visor profile lowered on the sides for maximum lateral vision in the riding position.

Visor construction

The visor is supplied with pins for attaching a Pinlock 120XLT 100% Max Vision lens. It is also supplied with pins for attaching tear off films.

The visor mechanism is equipped with metal locking levers to prevent unwanted opening of the visor during impacts, locked in the closed position by a front metal hook. The kinematic movement is designed to perfectly seal the visor against the rubber seal of the shell window, maintaining distance from the shell during opening. The quick release system allows for quick and easy replacement of the visor without tools.

ECE 2206 approved

11 Air vents

Chin ventilation

The chin vent consists of two openings located at the front of the helmet on either side of the visor lock mechanism. Each opening has a tab in the corner, which you use to open or close the vent. The air entering from this point will be channeled towards the inside of the visor, creating a laminar flow of air which effectively prevents fogging and the formation of condensation.

Chin guard vents

These are used to expel moist air outside the helmet.

Superior ventilation

The large central slider channels air towards the top of the head for improved comfort. This, in turn, when opened, is equipped with vents for extracting hot air from the pilot's forehead.

Rear spoiler

Under the rear spoiler, there are two air outlets for effective extraction of hot air.

EPS protection

EPS foam designed to distribute impact-absorbing properties exactly where they are needed.

The EPS features the patented A-Head height and angle adjustment system, developed by Alpinestars and originally used with great success in the S-M10 motocross helmet, to allow the product to be precisely adjusted to the rider's preferences regarding the height and angle at which the helmet sits on the head.

Emergency release system

Safe and easy removal of cheek pads while helmet is still worn.

The Supertech R10 has ECE/DOT/FIM approval.

3 shell sizes: XS-S, M, L, XL-2XL

Accessories included: Clear visor mounted, Pinlock, Tear offs, nose guard, helmet bag, dark smoke visor.
